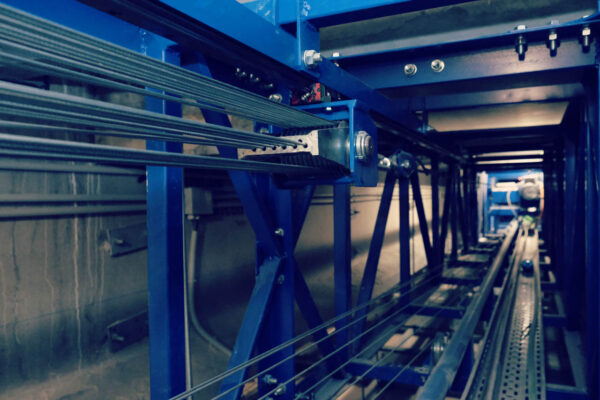

A motorized curtain with an Austrian opening system. The machine consists of a truss beam inside which a series of pulleys for rope redirection are housed, moved by a sliding carriage, in turn driven by a Tauri winch. The system is powered by a three-phase asynchronous motor.
Technical Specifications:
- Truss size: on request
- Diameter of the control rope: 3 mm
- Opening stroke: on request
- Max load capacity: on request
- Power: according to requirements
- Speed: from 0 to 1 m/s
- Control: predisposed proportional cloche
- Weight: depending on size
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 BGV C1 regulations, and CE marking.
