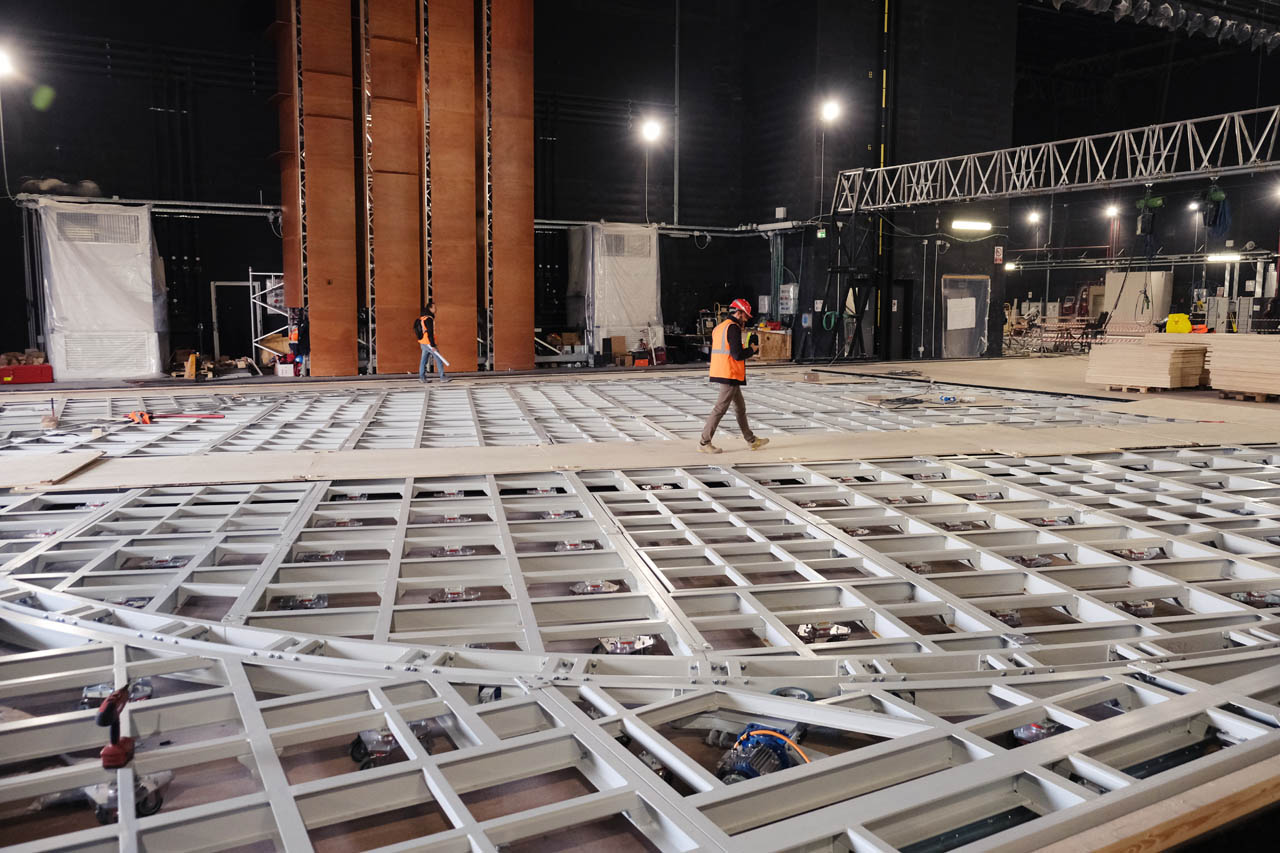

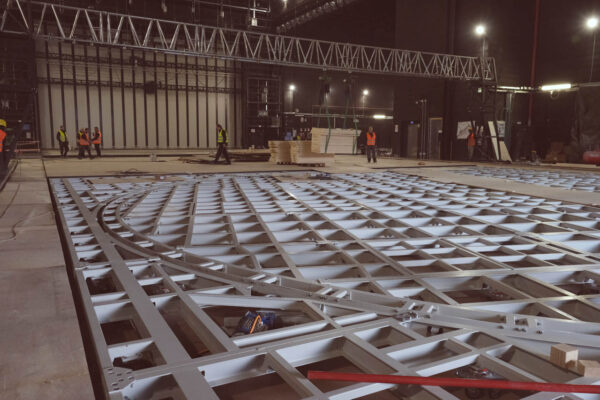

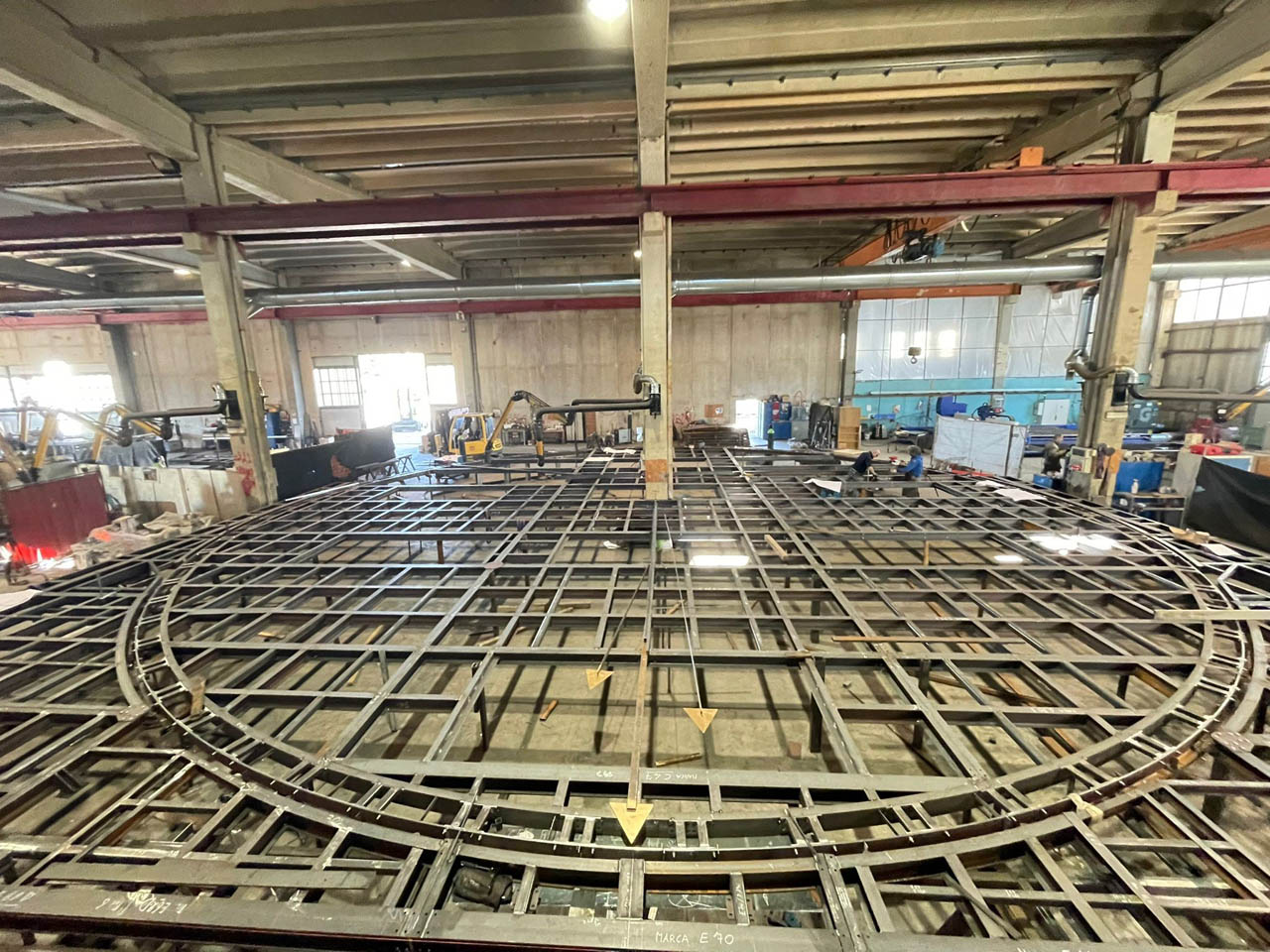

A motorized platform capable of translational and rotational movements, suitable for handling scenes in theatrical, television, and film contexts. Translation is achieved through a rack-and-pinion system, while rotation is facilitated by three-phase motors in adherence. The machine is designed for full interfacing with the STARS control system.
Technical Specifications:
- Platform size: on request
- Platform travel: on request
- Static load capacity: 500 daN/sqm
- Dynamic load capacity: on request
- Power: according to requirements
- Translation speed: from 0 to 18 m/min
- Rotation speed: from 0 to 1 rpm
- Max acceleration: 1.0 m/s²
- Own weight: depending on size
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 BGV C1 regulations, and CE marking.
