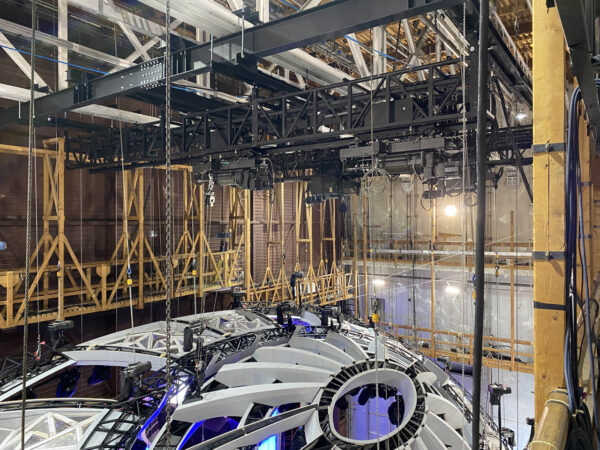

“Pegasus” Flight Hoist
A motorized trolley for transporting LED walls or other scenic materials. The machine consists of a steerable trolley capable of traversing curved and straight trajectories, actuated by a brushless motor gearbox on a rack-and-pinion gear transmission.
Technical Specifications:
- Truss size: 560 x 640 mm
- Minimum turning radius: 3700 mm
- Travel: on request
- Max load capacity: 600 daN
- Power: 0.4 kW
- Speed: from 0 to 0.5 m/s
- Control: proportional cloche predisposed
- Weight: 100 daN
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 standard, CE marking.

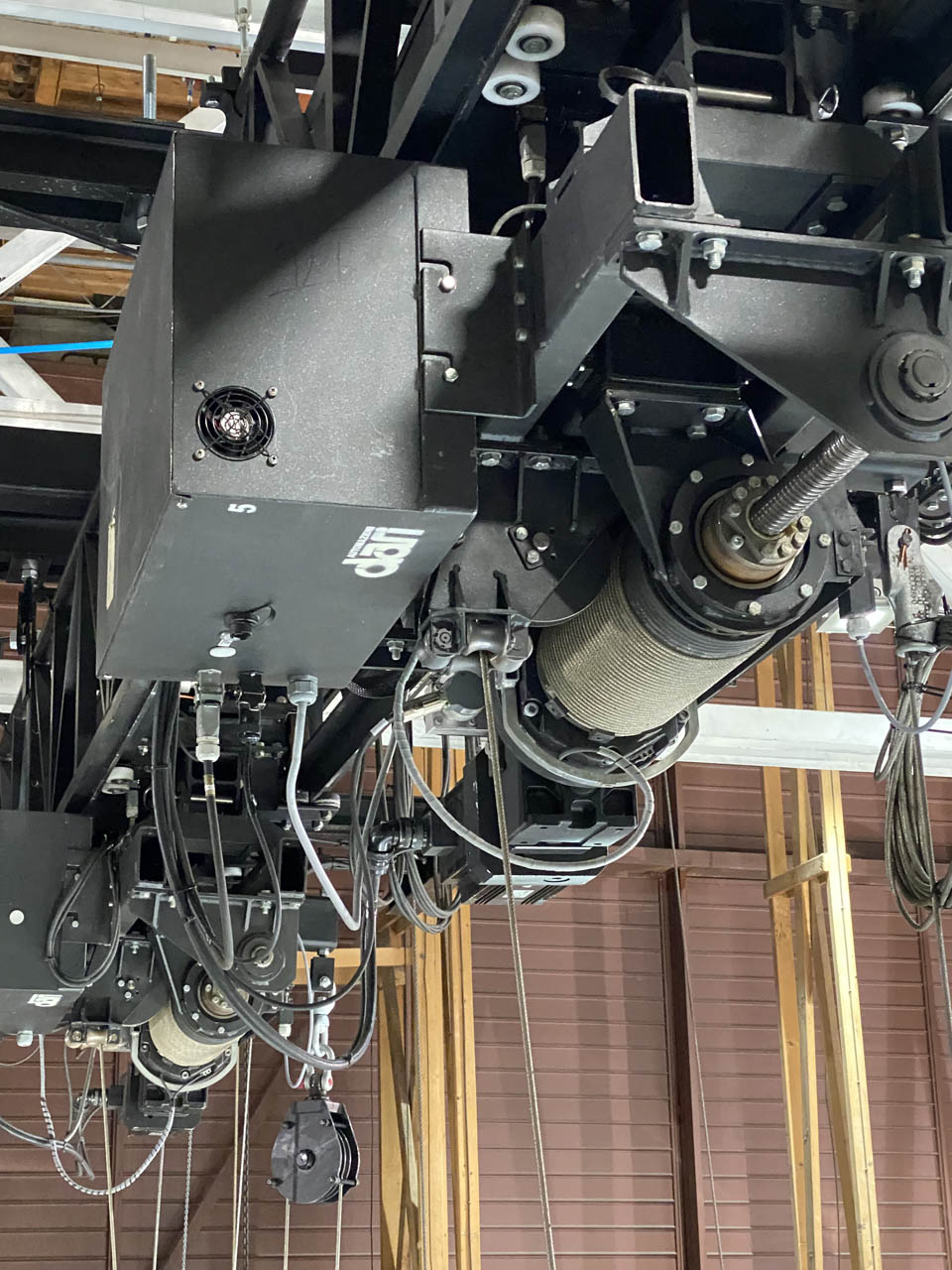

“Phoenix” Flight Hoist
A single-rope winch, suitable for the movement of people in theatrical, television, and cinema contexts. The automatic rope guide allows the maneuvering rope to exit in total safety conditions. The winch is equipped with a double independent brake, one on the drum and one on the brushless motor, limit and overtravel switches, crosswire sensor, and load detection sensor. The machine is designed for full interfacing with the STARS control system.
Technical Specifications:
- Number of ropes: 1
- Rope diameter: 7 mm
- Load bar travel: on request
- Max load capacity: 250 daN
- Power: 4 kW
- Speed: from 0 to 1 m/s
- Max acceleration: 1.5 m/s²
- Weight: 160 daN
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 standard, CE marking.
