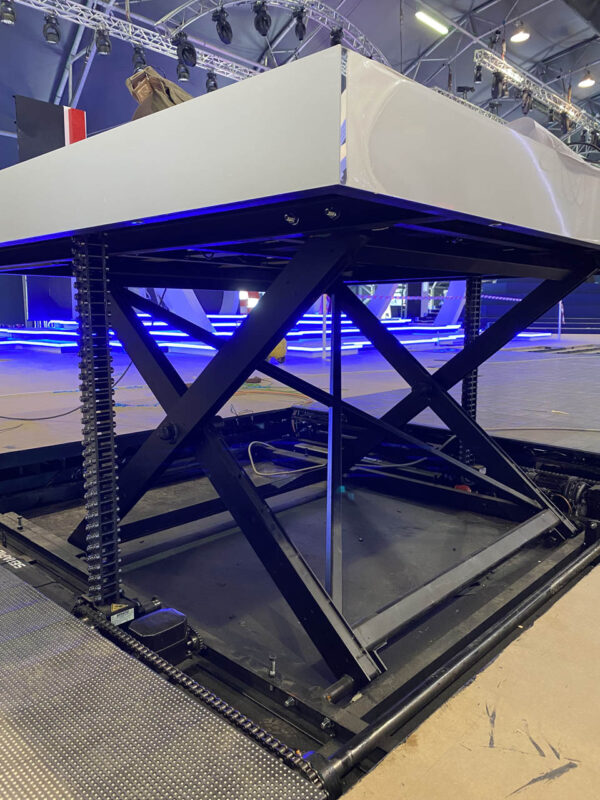

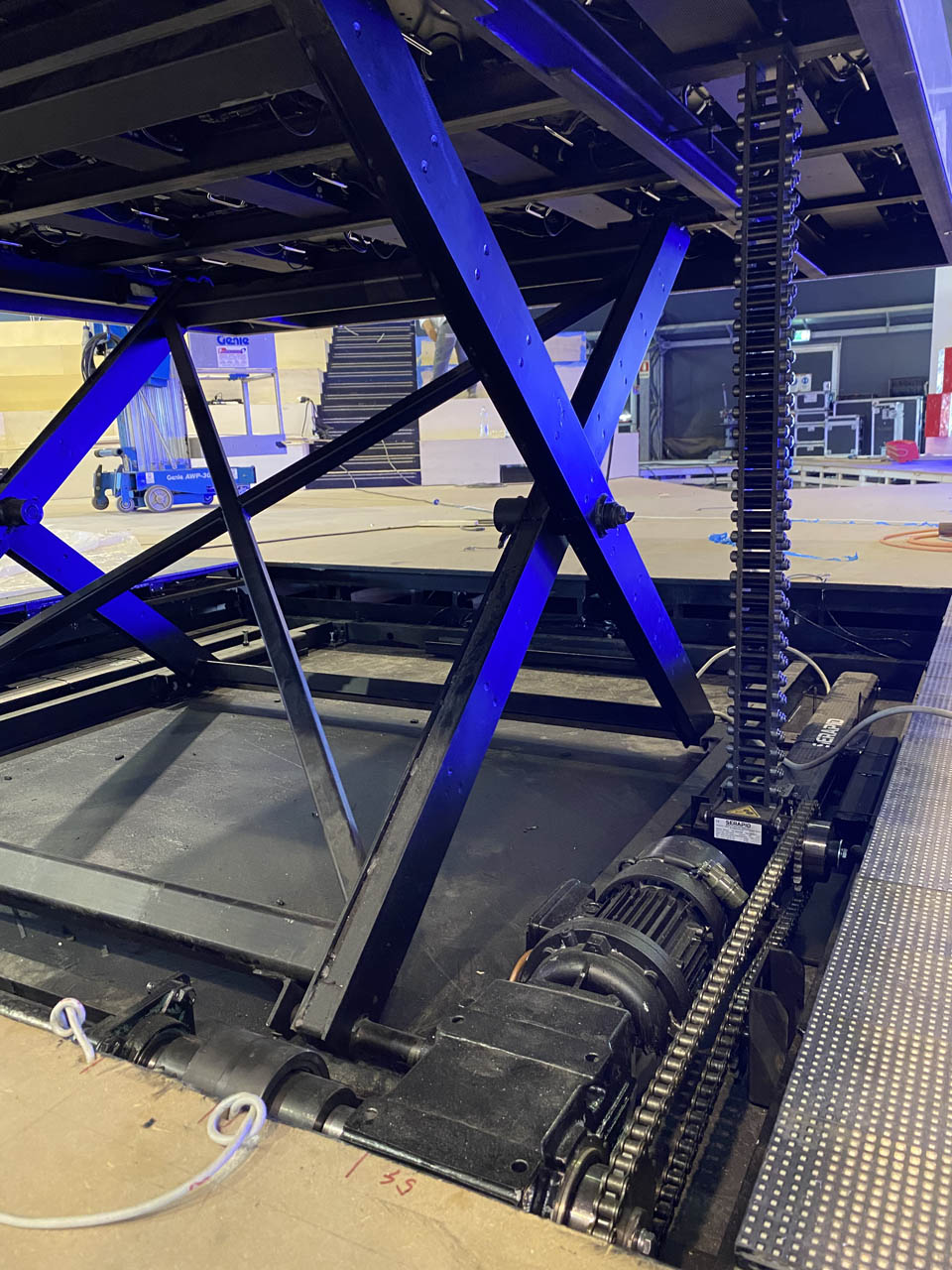

Motorized lifting platform designed for raising a rigid platform using two SERAPID devices connected through mechanical transmission and powered by a three-phase asynchronous electric motor. The machine does not require side guides and is suitable for live events and for scene handling in theatrical, cinematic, and cinema contexts.
Technical Specifications:
- Platform size: on request
- Platform travel: on request
- Static load capacity: 500 daN/sqm
- Dynamic load capacity: on request
- Power: according to requirements
- Speed: from 0 to 12 m/min
- Max acceleration: 1.5 m/s²
- Weight: depending on size
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 BGV C1 regulations, and CE marking.
