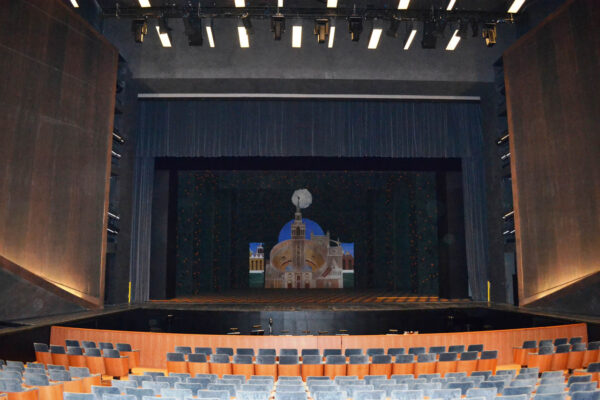

A motorized curtain with a Greek, German, and Italian opening system. The machine consists of a maneuvering track complete with trolleys inside, operated by a rope winch. The entire device is installed inside a truss beam specially designed to be raised and lowered manually as well as electrically. The system is provided with a manual release for emergency operation.
Technical Specifications:
- Truss size: on request
- Diameter of the control rope: 8 mm
- Fly bar travel: on request
- Max load capacity: on request
- Power: according to requirements
- Speed: from 0 to 2 m/s
- Control: predisposed proportional cloche
- Weight: depending on size
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 BGV C1 regulations, and CE marking.
