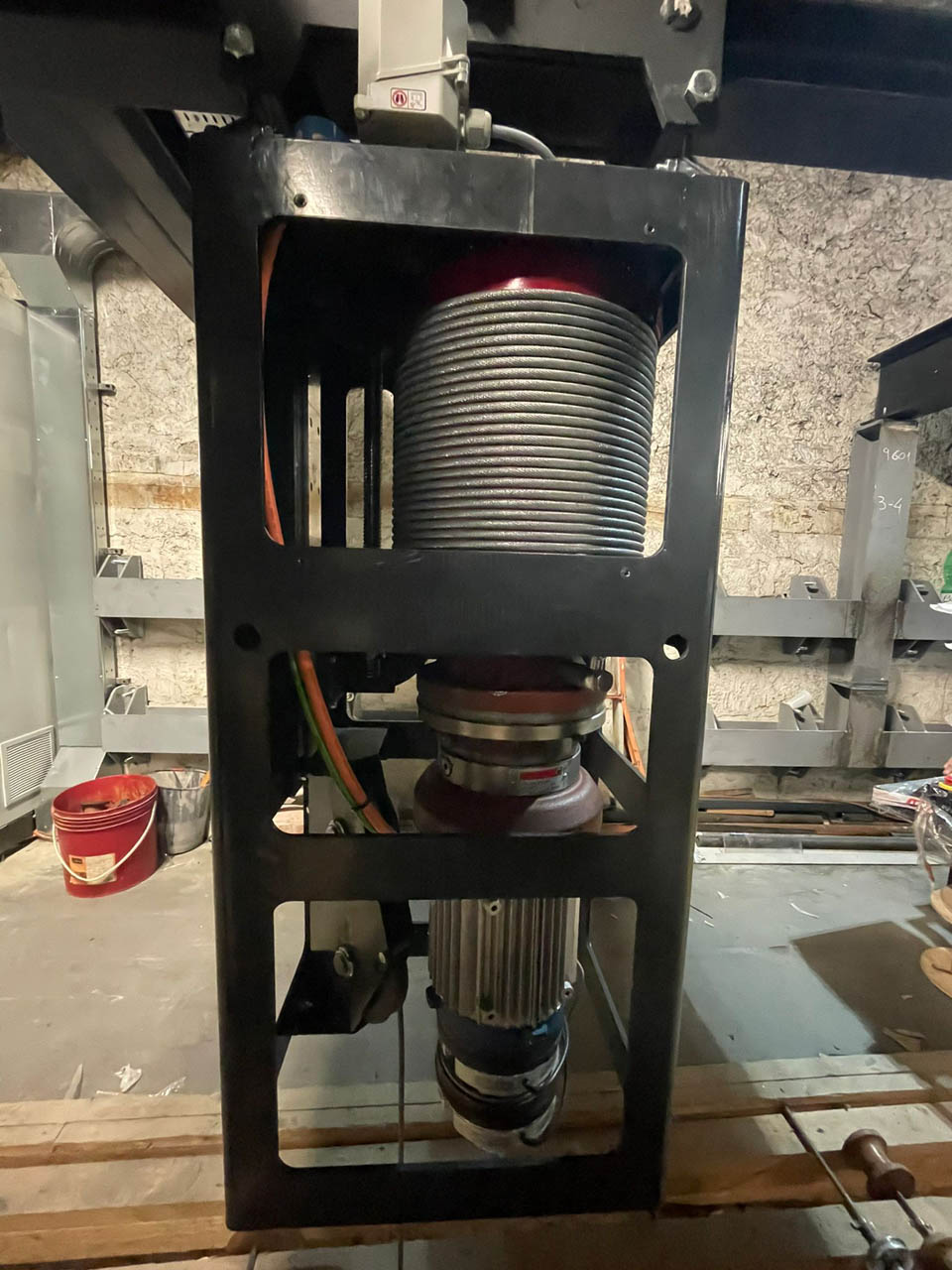

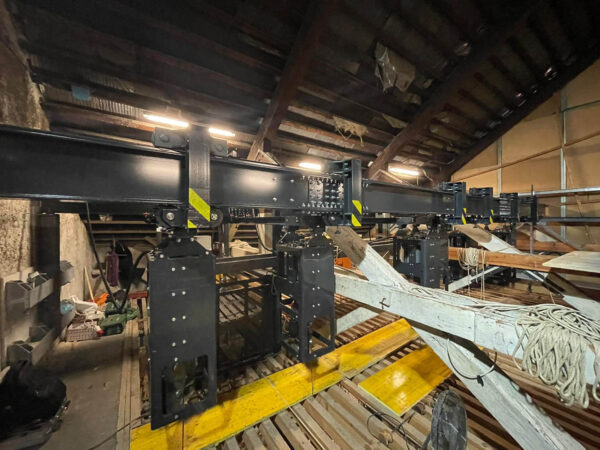

A point hoist suitable for moving scenes in theatrical, television, and cinema contexts mounted on a traversing trolley to allow movement in space for individual lifting points. Movement is controlled via the main console using specific programming software. The winch is equipped with dual independent brakes on the motor and is provided with a manual descent positioning system for grid plans, limit switch and extra limit switch, crosswire sensor, and load detection sensor. The machine is designed for full interfacing with the STARS control system.
Technical Specifications:
- Number of ropes: 1
- Rope diameter: 8 mm
- Fly bar travel: on request
- Max load capacity: 300 daN
- Power: 4 kW
- Speed: from 0 to 0.5 m/s
- Max acceleration: 1.5 m/s²
- Weight: 300 daN
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 BGV C1 regulations, and CE marking.
