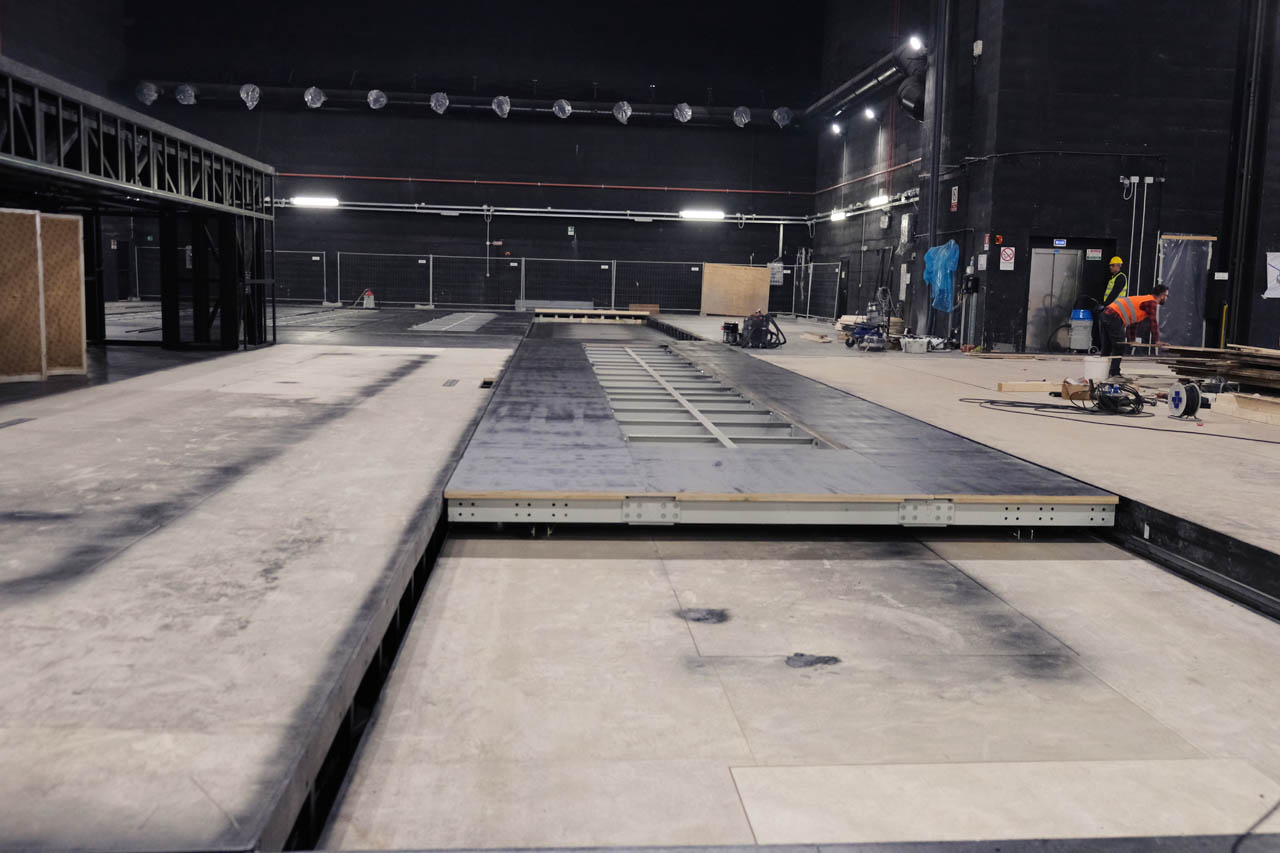

A motorized translating platform suitable for handling scenes in theatrical, television, and cinema contexts. The machine consists of a rigid platform mounted on bearing wheels, laterally guided, actuated by 2 drive wheels connected through mechanical transmission, driven by a three-phase asynchronous electric motor.
Technical Specifications:
- Platform size: on request
- Platform travel: on request
- Static load capacity: 500 daN/sqm
- Dynamic load capacity: on request
- Power: according to requirements
- Speed: from 0 to 0.5 m/s
- Max acceleration: 1.5 m/s²
- Weight: depending on size
- Machine compliant with European Machinery Directive 42/2006/EC, UNI EN 17206 BGV C1 regulations, and CE marking.
